AES-128bit Encryption long range Drone video transmitter with 98g weight and 15-30ms latency

Brand Name : IFLY

Model Number : FIM-2410

Certification : FCC, CE

Place of Origin : CHINA

MOQ : 1Set

Payment Terms : T/T, T/T, Western Union, MoneyGram

Delivery Time : 3-5days

Packaging Details : 1unit/carton

Encryption : AES-128Bit

Weight : 98g

Delay : 15-30ms latency

Application : For drone video tranmitter

Modulation : TDD-COFDM

Transmit Rate : 3-5Mbps

Video Res : Full HD 1080P

Power Input : DC7-18V

Contact Now

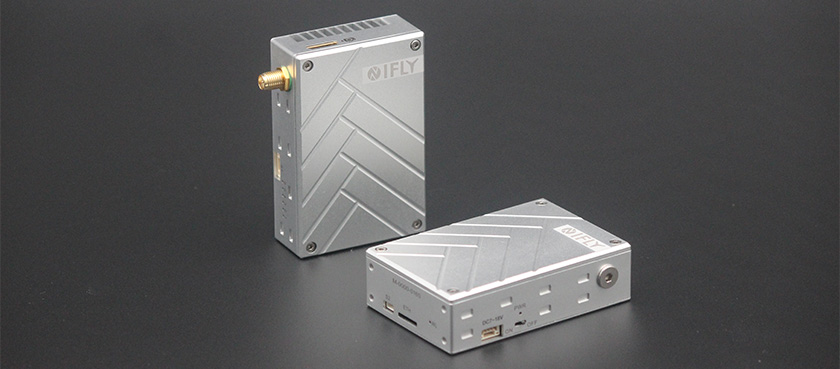

AES-128bit Encryption long range Drone video transmitter with 98g weight and 15-30ms latency





Introduction



FIM-2410 is special designed for high speed uav data transmission in movement. The transmit rate up to 3~5Mbps with H.265 video compression techonolgy, which can meet high quality video, audio and data transmission.

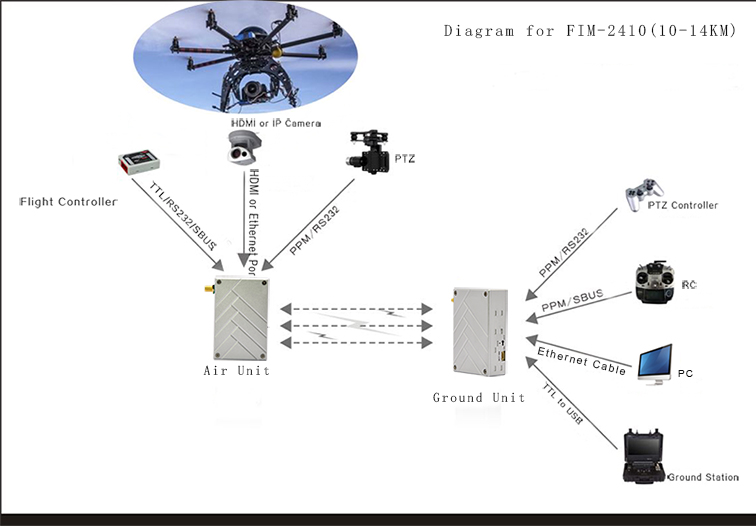

Application Diagram



AES-128bit Encryption long range Drone video transmitter with 98g weight and 15-30ms latency



Key Features





1 Working Temperature -40℃—+85℃
2 Ultra-high Resolution Image Independently developed CABAC (h.264+h.265) coding&decoding technology
3 Ultra-distance Air to ground 10-15km
4 Ultra-low Delay ≤15-30ms
5 Transmission Mode PTP
6 Transmission Signal digital video and/or video+Mavlink data link
7 Serial Data output QGroundControl
8 Serial baudrate Upto 115200bps
9 TTL Voltage 0-3.3V
10 RS232 Voltage -13V-+13V
11 Pixhawk Compatible APM, Pixhawk2.1, Pixhawk4 and Pixhack V3





Specification



Frequency

2.3Ghz/2.4GHZ(2.402-2.478GHz)/2.5Ghz for your option

 Adjustable
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power

1Watt (Air to ground 10km)


Frequency Bandwidth 4/8MHz Adjustable
Latency ≤15-30ms
Receive Sensitivity -100dbm ~ -90dbm
Transmitter Interface 1080P 60 HDMI Mini RX
100Mbps Ethernet Port
S1 TTL bidirectional serial port
S2 TTL bidirectional serial port
SMA RF
Receiver Interface 1080P 60 HDMI Mini RX
100Mbps Ethernet Port
S1 TTL bidirectional serial port
S2 TTL bidirectional serial port
DC7-18V
SMA RF
Video Color Space Default 4:2:0
Antenna 1T1R
Video Input/output Interface HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX Support the voice function
Video Compressed Format H.264+H.265 Support the bitrate output
Adjustment mode of bitrate Software adjustment
Communication Channel Encryption AES 128
Transmission Mode point to point / point to multipoint
Transmission Distance Air to ground 10-15km
Start-up time < 30s
Total delay of the system 15-30ms of 1080P60/720P60 coding and decoding
Two-way function Support video and duplex data simultaneously
Data Support SBUS/MAVLINK/Telemetry/TTL
Power supply DC 7- 18
Temperature Range Operating temperature:-40°C ~+ 85°C
Storage temperature:-55°C ~+ 100°C
Interface Power input interface × 1
Antenna interface × 1
RS232 Bidirectional Port × 1
Ethernet to USB / RJ45 on Windows × 1 Software adjustment
Indicator Light HDMI input/output indicator light
Transmitting and receiving indicator light
Video board indicator light
Power light
HDMI HDMI mini/Flexible Flat Cable(FFC)
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Size 72×47×19mm
Weight Tx: 94g, Rx: 98g
