Only 15ms Low Delay Wireless UAV Video Transmitter Ultra-miniature HD Audio Video Transmitter 1080P

Product Categories
Hong Kong IFly Electronics Co., Limited
Contact Now

Only 15ms Low Delay Wireless UAV Video Transmitter Ultra-miniature HD Audio Video Transmitter 1080P

  • 1
  • 2

Brand Name : IFLY

Model Number : F-UH-2410

Certification : CE

Place of Origin : CHINA

MOQ : 1Set

Payment Terms : T/T, Western Union

Supply Ability : 1000pcs/month

Delivery Time : 3-5days

Packaging Details : 1set/box

Modulation : TDD-COFDM

Baud Rate : 115200bps

Data TX : Duplex

Fly control system : Pixhawk

Encryption : AES

Latency : 15-30ms

Video Output : HDMI to dispaly or Ethernet to PC

Weight : 93g

Contact Now

Only 15ms Low Delay Wireless UAV Video Transmitter Ultra-miniature HD Audio Video Transmitter 1080P



Introduction:



1.Real time HD video,audio,datas transmission back to ground,SD&HD both support,also for night vision camera video.


2. Using low-frequency transmission,Long distance transmission and better diffractive capability ,up to 10km patrol distance.


3. With Cofdm high reliable anti-electromagnetic interference and anti-multipath fading ability to transmit high-definition stable video,the best solution for high-speed mobile wireless real-time image transmission.



4. End to End 150ms delay,Unique design special for UAV installation and fixed





Features:

  • Support 1080P / 720P resolution
  • Micro dimension, micro lightweight, easy to carry, heat dissipation of aluminum case
  • Only 15-25ms delay for whole system working
  • Built-in with HDMI ethernet and RS232 interface (multi selection)
  • Supports two-way(data&image&voice)communication
  • Ultra-distance ~1080P/ 300 meters altitude up to 50 km transmission distance



Parameters



Frequency 2.4GHz(2.402-2.478GHz)
Wireless Fault-tolerant LDPC FEC
RF Transmitted Power 1000mW (Air to ground 10km)
Power Consumption TX: 7Watts
RX: 5Watts
Frequency Bandwidth 2/4/6/8MHz
Latency ≤12-25ms
Receive Sensitivity -100dbm ~ -90dbm
Video Color Space Default 4:2:0 optional: 4:2:2/4:4:4
Antenna 2T2R
Video Input/output Interface HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX
Video Compressed Format H.264+H.265
Bitrate Software adjustment
Encryption WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256
Transmission Distance Air to ground 5km
Start-up time < 30s
Two-way function Support video and duplex data simultaneously
Data Support SBUS/PPM/TTL
Power supply DC 7- 18V
Interface 1080P/60 HDMI Mini RX x1
100Mbps Ethernet to USB / RJ45 on Windows × 1
S1 TTL bidirectional serial port x1
Power Input x1
Indicator Light HDMI input/output Status
Transmitting and receiving
Video board working Status
Power
HDMI HDMI mini/Flexible Flat Cable(FFC)
Temperature Range Operating temperature:-40°C ~+ 85°C
Storage temperature:-55°C ~+ 100°C
Appearance Design CNC technology/ double aluminum alloy shell with waterproof design
Dimension 72×47×19mm
Weight Tx: 94g/Rx: 94g



Products Details

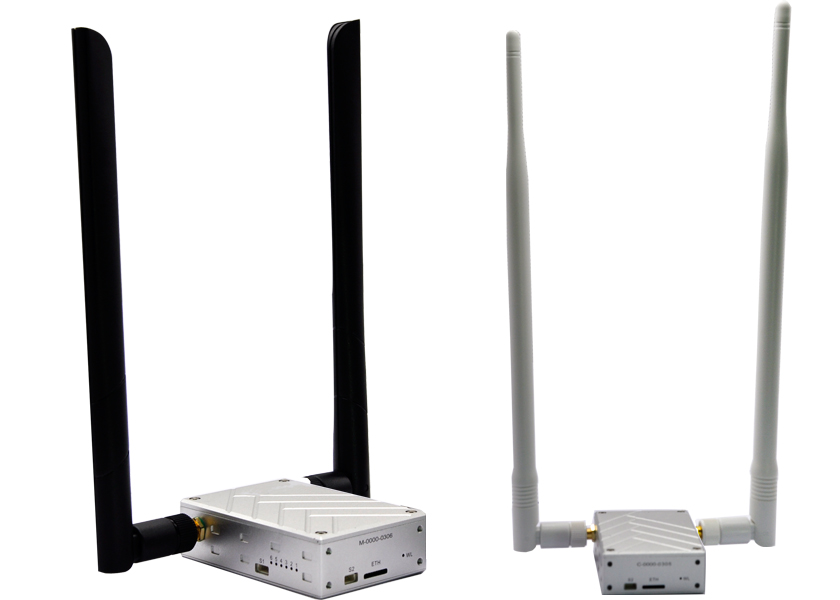

 Only 15ms Low Delay Wireless UAV Video Transmitter Ultra-miniature HD Audio Video Transmitter 1080P



Package List



Only 15ms Low Delay Wireless UAV Video Transmitter Ultra-miniature HD Audio Video Transmitter 1080P


Buy cheap Only 15ms Low Delay Wireless UAV Video Transmitter Ultra-miniature HD Audio Video Transmitter 1080P product

Only 15ms Low Delay Wireless UAV Video Transmitter Ultra-miniature HD Audio Video Transmitter 1080P Images
